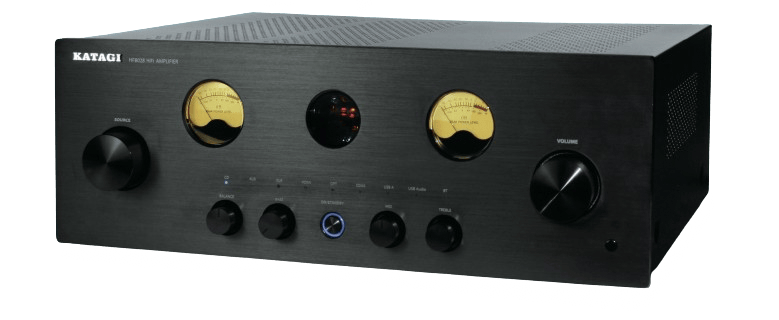

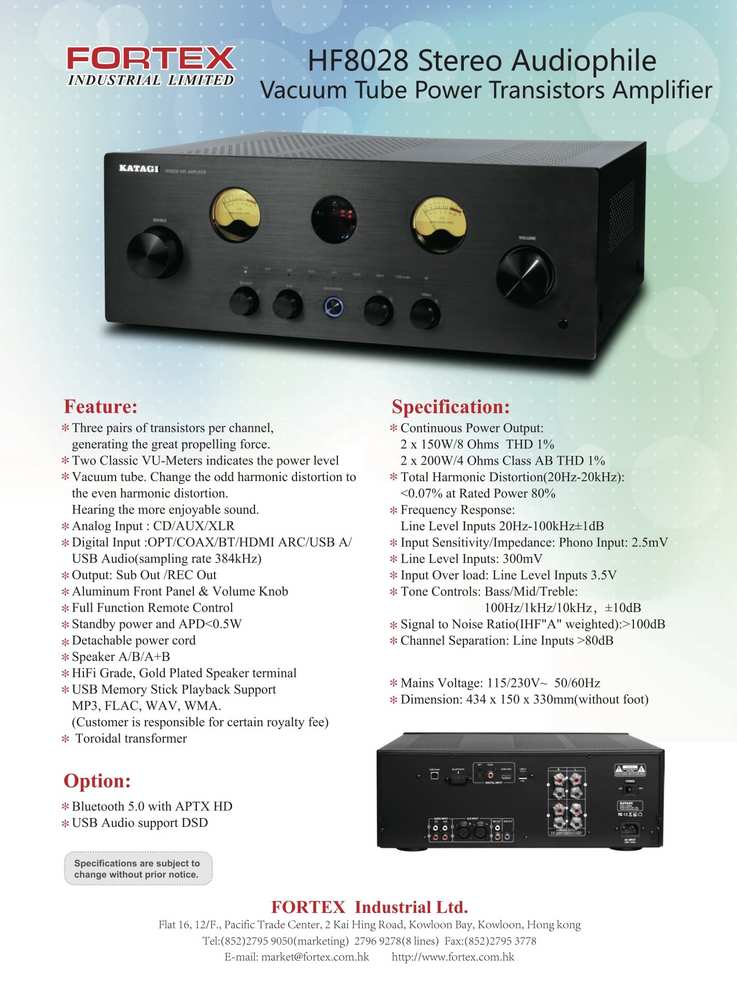

VU meter Power Amplifier
HF8028
Three pairs of transistors per channel, generating the great propelling force.
Two Classic VU-Meters indicates the power level
Vacuum tube. Change the odd harmonic distortion to the even harmonic distortion.
Hearing the more enjoyable sound.
Hearing the more enjoyable sound.
Analog Input: CD/AUX/XLR
Digital Input :OPT/COAX/BT/HDMI ARC/USB A/USB Audio (sampling rate 384kHz)
Output: Sub Out /REC Out
Aluminum Front Panel & Volume Knob
Full Function Remote Control
Standby power and APD<0.5W
Detachable power cord
Speaker A/B/A+B
HiFi Grade, Gold Plated Speaker terminal
USB Memory Stick Playback Support MP3, FLAC, WAV, WMA.
(Customer is responsible for certain royalty fee)
(Customer is responsible for certain royalty fee)
Toroidal transformer
Continuous Power Output:
2 x 150W/8 Ohms THD 1%
2 x 200W/4 Ohms Class AB THD 1%
2 x 150W/8 Ohms THD 1%
2 x 200W/4 Ohms Class AB THD 1%
Total Harmonic Distortion (20Hz-20kHz):
<0.07% at Rated Power 80%
<0.07% at Rated Power 80%
Frequency Response: Line Level Inputs 20Hz-100kHz+1dB
Input Sensitivity/Impedance: Phono Input: 2.5mV
Line Level Inputs: 300mV
Input Over load: Line Level Inputs 3.5V
Tone Controls: Bass/Mid/Treble: 100Hz/1kHz/10kHz, ‡10dB
Signal to Noise Ratio (IHF"A" weighted): >100dB
Channel Separation: Line Inputs >80dB
Mains Voltage: 115/230V~ 50/60Hz
Dimension: 434 x 150 x 330mm (without foot)
Bluetooth 5.0 with APTX HD
USB Audio support DSD
